RGT 100

PORTABLE FAULT LOCATOR SYSTEM

RLF P8-16-32

It is a portable system for testing and fault locating on low and medium voltage cables.

Highlights

• Compact, portable and sturdy unit.
• Safe and rapid location of faults applying the latest technologies in the field of reflectometry.
• High peak power to ensure accurate and effective pin-pointing.
• This unit features several fault location methods (TDR-ICE-ARC).

Description

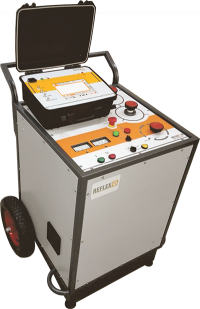

The RLF P8-16-32 is a portable system for testing and fault locating on low and medium voltage cables.
The powerful ARM (Arc Reflection Method) method featured by the TS80 reflectometer is used for pre-locating high-resistance faults at any of the 3 ranges (8-16-32 kV) of the shock waves impulse generator.
Low-resistance faults can be located through the TDR (Time Domain Reflection) method, avoiding the use of high-voltage / energy methods.
The peak power of 1024J (2048J optional) provides the power required to accurately pin-point cable faults through the acoustic method using the powerful pin-poniter RPF A / I.
This powerful high-voltage source allows testing at any voltage level up to 32kV.
Its sturdy wheels make this unit suitable for field work.
Ground, power supply and HV terminals are located in the rear part of the unit and are easily accessible.

Additional equipment

Pin - Pointer - RPF A/I

Power Cable Identifier

Ground Fault locator

RMA
