Compact system for testing and fault locating on low and medium voltage cables.

Highlights

  • Compact and sturdy unit.
  • Modular configurable.
  • High energy peak for accurate and effective pin-pointing.
  • Safe and fast location of faults.
  • It includes several methods of pre-fault location (TDR-ICE-ARC).
  • Suitable for medium-small utility.

Description

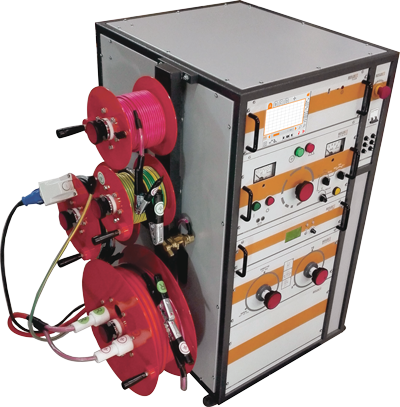

The RLF C8-16-32 is a compact test device and cable fault location low and medium voltage.

The TS80R reflectometer has the most modern pre-locating methods TDR (Time Domain Reflection) ICE (Impulse Current) ARC (Arc Reflection Method) and DECAY (Voltage Decay) methods which you can use on any of the 3 ranges (8-16- 32 kV) of the impulse generator shockwave.

A peak power of 1024J (2048J optional) provides the power required to accurately pin-point cable faults through the acoustic method using the powerful pin-pointer RPF A / I.

The powerful high voltage source allows testing at any voltage level between 0 to 32kV.

Typical configuration

- Command Module
- Reflectometer TS 80R
- Audio frequency generator RGT 100R
- Switch Range key (8, 16 or 32 kV)
- Switch functions Key (ARC Filter, Direct and Signal)

You can choose reel containers cables with 50 meters or 20 meters reel container side:
- AT Output cable.
- Safety ground cable.
- Operation ground cable.
- Power cord.


gallery/tabla eng rlf c8-16-32

Pin - Pointer, RPF A/I

Power Cable Identifier

gallery/fotos no contractuales eng

Additional equipment

COMPACT FAULT LOCATOR SYSTEM
RLF C8-16-32

Ground Fault locator

RMA

gallery/marco-a + valija
