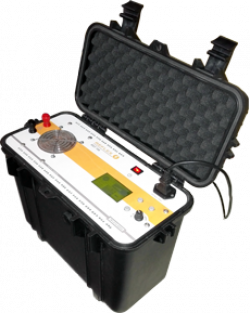

AUDIO FREQUENCY GENERATOR
RGT 100
It is an audio-frequency generator to locate and trace the route of underground cables and to pin-point cable faults.
Highlights
- Powerful and long-reach generator.
- Compact size.
- Modulation of blinking signal.
- Multi-frequency.
- Output impedance adaptation circuit.
Description
The RTG 100 audio frequency generator enables operators of power companies and telecommunication cables to solve a wide variety of problems.
This generator can be used to trace the route of underground cables and to locate and identify cable faults.
A new development in the RGT 100 range is its capability of transmitting three frequencies simultaneously, enabling the operator to select the best frequency received during the localization process.
The RTG 100 audio frequency generator is used in conjunction with the cable fault pin-pointer RPF A / I.
Thanks to its reliable design, there is no overheating of the generator in continuous operation, both when feeding capacitive loads or inductive loads .
AUDIO FREQUENCY GENERATOR - RGT 100R
The RTG 100 audio frequency generator is available in its 19-inch version, and is suitable for 19-inch rack measurement systems.
Additional Equipment
Pin - Pointer, RPF A/I
