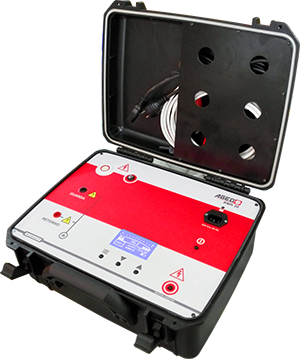

RESISTENCE METER

RMR 20

High voltage portable equipment, is used for resistance measurement up to 20kV.

Highlights

• Digital measurement on LCD display.
• Test voltages, 5kV, 10kV, 15kV and 20kV.
• Test voltage continuously adjustable between 0 to 20 kV.
• Polarization index (PI)
• Dielectric absorption ratio (DAR)
• Programmable timer
• Guard circuit
• Stand-alone battery-operated equipment
• Lightweight and compact design.

Description

The RMR 20 resistance meter is a high voltage generator with variable outputs (5kv, 10kV, 15kV and 20kV) that allows measurements up to 2,000,000 MΩ..

Technical specifications

• Easy operation
• Built-in rechargeable battery that makes it totally independent from mains power.
• Low weight and compact design
• LCD Display
• Low battery protection
• Output voltage: 5kV, 10kV, 15kV and 20kV.
• Continuously adjustable output voltage mode between 0 and 20kV.
• Numeric digital display and analog bars on LCD display.
• Supports output short circuit
• Guard circuit
