RPA 60/80CA
RPA 80/110CA

It is a portable AC/DC voltage tester.
It is used in dielectric testing on both wires and cable installations.


  • Optimized safety provided to operating personnel thanks to its operation protective interlocks.
  • Easy operation.
  • Digital measurement: kV, μA, mA, MΩ y GΩ.
  • Easy and fast installation.
  • Compact design, portable for use in the field.
  • Portable hand cart.


The RPA insulation tester is a AC/DC voltage equipment to measure insulation resistance in both wires, cable installations, aerial platform, bucket truck, vacuum bottles/interrupters, switchgear, hot sticks, Gloves, Ropes, hydraulic hoses in compliance with VDE standards.

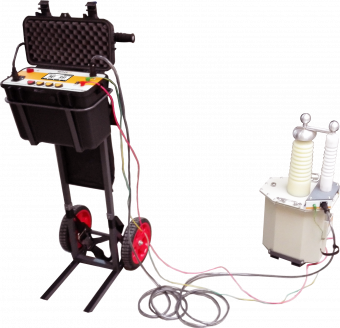

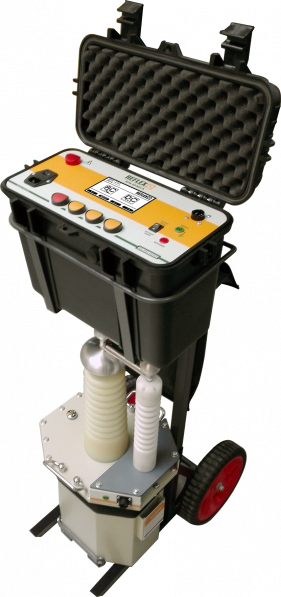

The RPA 60/80CA model and the RPA 80/110CA model include an operating unit and a high voltage unit in two separate modules. Its compact, lightweight design allows easy transport to trial sites thanks at the portable hand cart desing.
It has totally digital measurement, it measures: voltage, current and resistance.

gallery/tabla rpa 60-80ca eng
gallery/fotos no contractuales eng

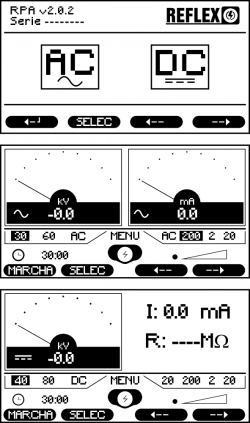

gallery/rpa 60-80 lcd

Resistive discharge rod (2000J)

gallery/tabla rpa 80-100ca eng
